H8-5500
H8-5500
Combine Harvester
H8-5500

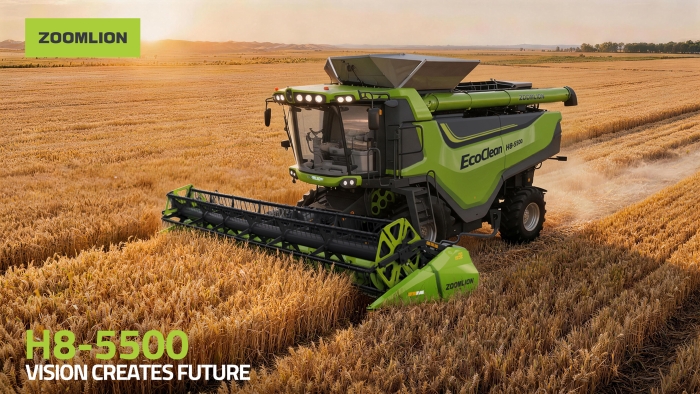

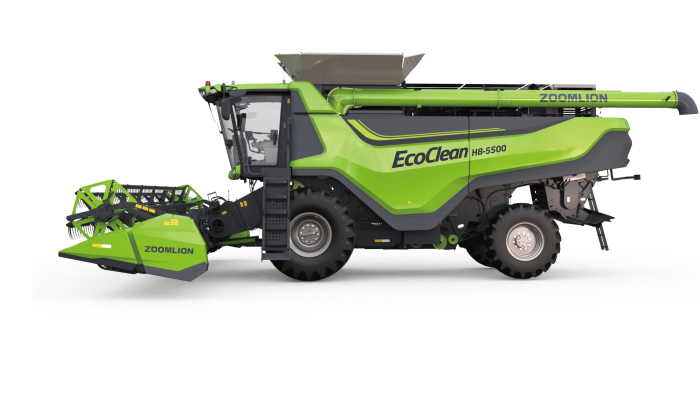

An intelligent, high-capacity combine harvester engineered for large-scale farming operations worldwide, delivering low grain loss and superior harvesting efficiency.

H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
  • images
  • 22 kg/s
    Throughput Capacity
  • 40 km/h
    Maximum speed
  • 466 mm
    Minimum Ground Clearance
  • 22 kg/s
    Throughput Capacity
  • 40 km/h
    Maximum speed
  • 466 mm
    Minimum Ground Clearance
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
H8-5500
  • images
Advantage introduction
    • Powerful performance: Powered by a robust 580 hp engine. Three selectable operating modes—Light Duty, Standard, and Heavy Duty—optimize fuel efficiency and field performance.

    • High throughput capacity: up to 22 kg/s.

    • Multi-crop versatility: Compatible with a wide range of headers, enabling efficient harvesting of wheat, corn, soybeans, rice, sunflower, rapeseed and flaxseed.

    • Intelligent harvesting management: Equipped with 13 intelligent sensing and monitoring channels for real-time monitoring of grain loss, grain damage and impurity levels.

    • Threshing & cleaning system: Combines hybrid flexible threshing technology with a dual-layer, dual-airflow cleaning system to maximize crop separation efficiency, maintaining grain loss below 0.6%.

    • Heavy-duty chassis: Features a wheel-track interchangeable running gear, achieving a maximum transport speed of 40 km/h and a gross carrying capacity exceeding 35 tons.

More Advantages
Param
 FunctionZoomlion H8-5500
ParametersUnitValue/Specification
Overall Machine Parameters
Throughput Capacitykg/s22
maximum speedkm/h40
Minimum Ground Clearancemm466
Engine
Emission Standard/ Euro 3A
Horsepowerhp580
Fuel Tank CapacityL1100
Feeder Housing
Widthmm1700
Floating Axes/6
Feeding System Reversing/
Dust Removal System/
Threshing System
Threshing & Separation Technology/Triple Tangential&Dual Axial Flow
Dimensions of threshing drummmΦ600×1680
Number of separating drums/2
Dimensions of separating drummmΦ445×4200
Cleaning System
Number of fan outlets/Dual
Fan Speed Adjustment /CVT
Cleaning Area6.2
Grain Tank
Tank Capacity13
Unloading RateL/s130
Chopper System
Dynamic Straw Spreading System/
